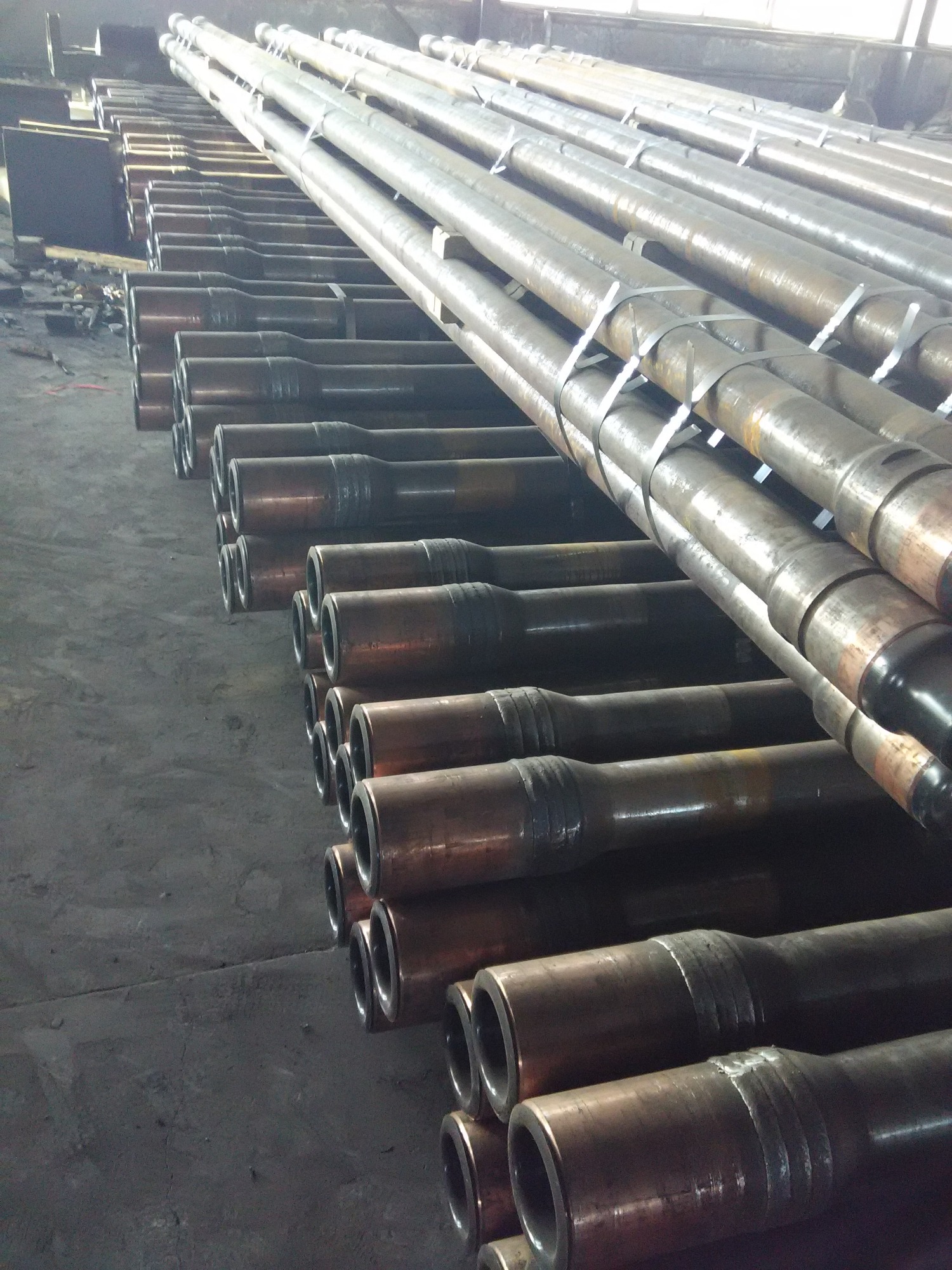

鉆桿在鉆探過程中具有舉足輕重的作用,它將鉆機扭矩傳遞給鉆頭,實現鉆進。在鉆孔中,鉆桿承受著非常復雜的載荷,幾乎同時承受了拉、壓、扭轉、彎曲等應力,并且鉆桿柱本身是一個彈性系統,鉆進過程中鉆井液的循環和鉆桿柱的振動使得鉆桿柱承受了很大的動載。
鉆桿分類:
E75、X95、G105、S135等。
鉆桿性能表:
摩擦焊焊區機械性能 |
| 屈服強度 | 抗拉強度 | 伸長率 | 導向彎曲 | 沖擊功(Akv) | 硬度 HRC |
性能 項目 |
MPa | MPa | % |
| J |
標準 | 鋼級 | 拉伸試樣:¢12.5;沖擊試樣:10×10 夏比-V、20℃ |
SY/T5561-92焊區規定 | E-75 | ≥517 | ≥689 | ≥13 | / | 平均值≥20 最低值≥15 | / |
X-95 | ≥609 | ≥712 | / | / |
G-105 | ≥655 | ≥724 | / | / |
S-135 | ≥724 | ≥793 | / | / |
API對焊區規定 | E-75 | ≥609 | ≥712 |
| 彎曲面任何方向開裂≤3.175mm | 平均值≥27 最低值≥23 | HAZ內HRC≤37 |
X-95 | ≥655 | ≥724 |
|
G-105 | ≥724 | ≥793 |
|
S-135 | ≥392 778 793 | ≥421 1000 |
|
API對管體規定 | E-75 | ≥517 ≤724 | ≥689 |
| / | 平均值≥54 最低值≥47 | / |
X-95 | ≥655 ≤862 | ≥724 |
|
G-105 | ≥724 ≤931 | ≥793 |
|
S-135 | ≥931 ≤1138 | ≥1000 |
|
石油焊接鉆桿系列參數一覽表 (符合API標準) |
|
|
管體外徑 OD | 管體壁厚 Wall thickness | 管體加厚形式 | 鋼級 | 鉆桿長度 | 接頭外徑 | 螺紋類型 | 外螺紋接頭內徑 | 近似質量 |
inch | mm | inch | mm | Grade | 范圍1 | 范圍2 | 范圍3 | kg/m |
2-3/8 | 60.32 | 0.280 | 7.11 | EU | X、G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 85.7 | NC26 | 44.5 | 15.8 |
2-7/8 | 73.02 | 0.362 | 9.19 | EU | X、G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 104.8 | NC31 | 50.8 | 24.6 |
2-7/8 | 73.02 | 0.362 | 9.19 | EU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 111.1 | NC31 | 41.3 | 26.7 |
3-1/2 | 88.90 | 0.368 | 9.35 | EU | G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 127.0 | NC38 | 61.9 | 32.6 |
3-1/2 | 88.90 | 0.368 | 9.35 | EU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 127.0 | NC38 | 54.0 | 33.1 |
3-1/2 | 88.90 | 0.449 | 11.40 | EU | G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 127.0 | NC38 | 54.0 | 37.8 |
3-1/2 | 88.90 | 0.449 | 11.40 | EU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 139.7 | NC40 | 57.2 | 39.0 |
4 | 101.60 | 0.330 | 8.38 | IU | G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 139.7 | NC40 | 61.9 | 35.2 |
4 | 101.60 | 0.330 | 8.38 | IU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 139.7 | NC40 | 50.8 | 35.8 |
4 | 101.60 | 0.330 | 8.38 | EU | X、G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 152.4 | NC46 | 82.6 | 35.9 |
4 | 101.60 | 0.330 | 8.38 | EU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 152.4 | NC46 | 76.2 | 36.4 |
4-1/2 | 114.30 | 0.337 | 8.56 | EU | X、G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 168.3 | NC50 | 95.3 | 41.8 |
4-1/2 | 114.30 | 0.337 | 8.56 | EU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 168.3 | NC50 | 88.9 | 42.4 |
4-1/2 | 114.30 | 0.430 | 10.92 | EU | X、G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 168.3 | NC50 | 88.9 | 50.1 |
4-1/2 | 114.30 | 0.430 | 10.92 | EU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 168.3 | NC50 | 76.2 | 51.1 |
4-1/2 | 114.30 | 0.337 | 8.56 | IEU | X、G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 158.8 | NC46 | 76.2 | 41.3 |
4-1/2 | 114.30 | 0.337 | 8.56 | IEU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 158.8 | NC46 | 69.9 | 41.8 |
4-1/2 | 114.30 | 0.430 | 10.92 | IEU | G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 158.8 | NC46 | 63.5 | 50.6 |
4-1/2 | 114.30 | 0.430 | 10.92 | IEU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 158.8 | NC46 | 57.2 | 51.0 |
5 | 127.00 | 0.362 | 9.19 | IEU | G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 168.3 | NC50 | 82.6 | 49.1 |
5 | 127.00 | 0.362 | 9.19 | IEU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 168.3 | NC50 | 69.9 | 50.0 |
5 | 127.00 | 0.362 | 9.19 | IEU | X、G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 177.8 | 5 1/2FH | 95.3 | 50.1 |
5 | 127.00 | 0.362 | 9.19 | IEU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 184.2 | 5 1/2FH | 88.9 | 51.2 |
5 | 127.00 | 0.500 | 12.70 | IEU | G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 168.3 | NC50 | 69.9 | 62.7 |
5 | 127.00 | 0.500 | 12.70 | IEU | G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 184.2 | 5 1/2FH | 88.9 | 64.6 |
5 | 127.00 | 0.500 | 12.70 | IEU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 184.2 | 5 1/2FH | 82.6 | 65.2 |
5-1/2 | 139.70 | 0.362 | 9.19 | IEU | G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 184.2 | 5 1/2FH | 88.9 | 56.0 |
5-1/2 | 139.70 | 0.362 | 9.19 | IEU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 190.5 | 5 1/2FH | 76.2 | 58.5 |
5-1/2 | 139.70 | 0.415 | 10.54 | IEU | X、G | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 184.2 | 5 1/2FH | 88.9 | 61.5 |
5-1/2 | 139.70 | 0.415 | 10.54 | IEU | S | 6.40-7.62 | 9.14-10.36 | 12.19-14.63 | 190.5 | 5 1/2FH | 76.2 | 64.0 |
注:1.IU、EU、IEU為內加厚、外加厚和內外加厚 2.螺紋有右旋、左旋并鍍銅或磷化 3.本表為常用鋼級的鉆桿,低鋼級鉆桿同樣可以供應。 |
鉆桿生產優勢:
采用當前國內外先進的摩擦焊焊接形變熱處理技術,熱影響區小、焊接后應力過渡區更容易消除。嚴格執行焊接形變熱處理規范的工藝評定、優化參數、確保焊接質量更好、更加穩定可靠。
