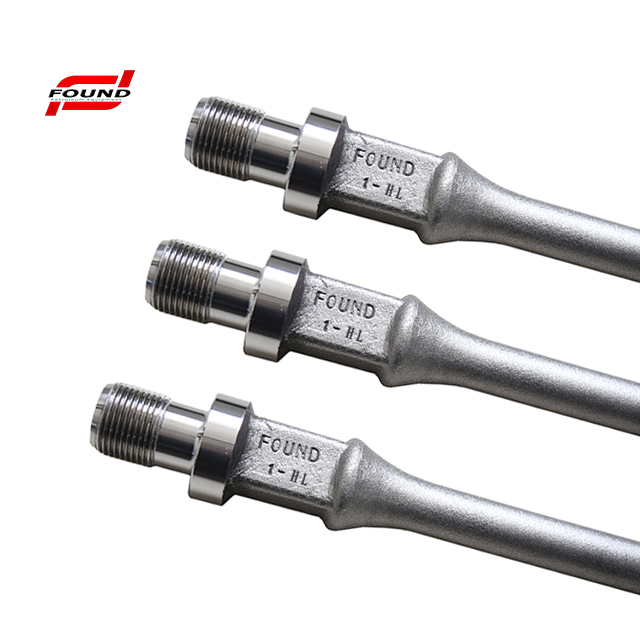

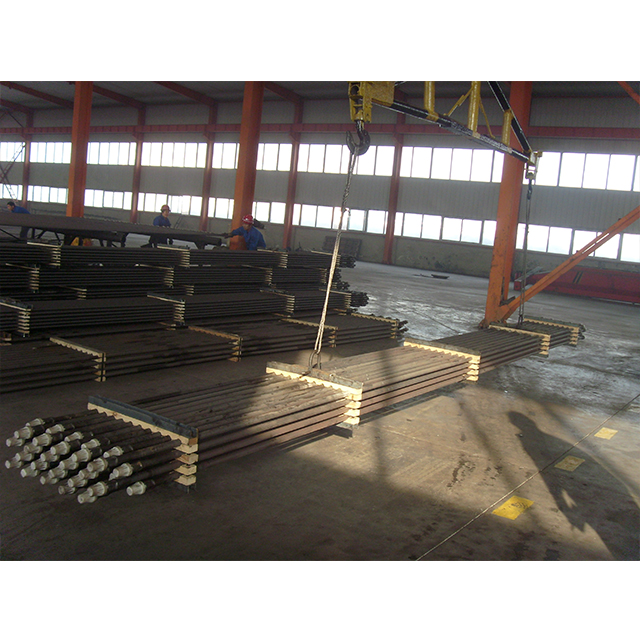

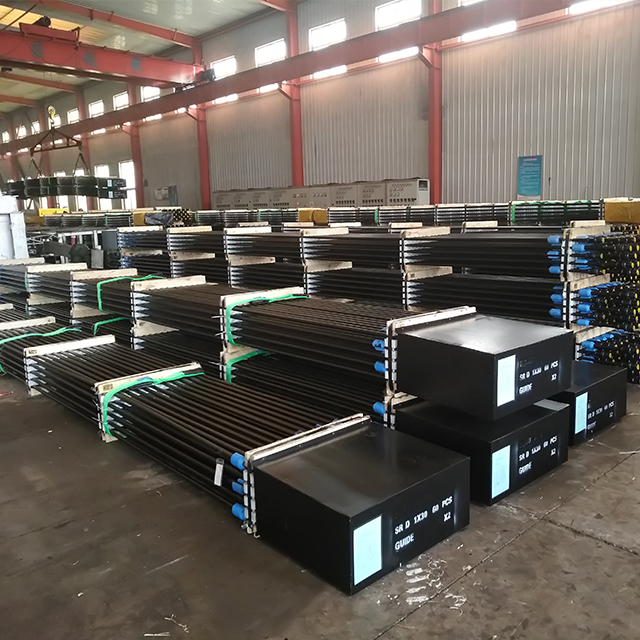

抽油桿說明
抽油桿是有桿抽油設備的重要部件。抽油桿通過接箍連接成抽油桿柱,上經光桿連接抽油機或螺桿泵電機,下接抽油泵的柱塞或螺桿泵,其作用是將地面抽油機驢頭懸點的往復運動傳遞給井下抽油泵或是將螺桿泵電機的旋轉扭力傳遞給井下螺桿泵。
抽油桿按機械性能分為:C級、K級、D級、KD級、HL級、HY級抽油桿。
抽油桿規格型號表
抽油桿標稱值 | Φ16(5/8") | Φ19(3/4") | Φ22(7/8") | Φ25(1") | Φ29(11/8") |
桿體直徑 | 15.88+0.18-0.36 | 19.05+0.20-0.41 | 22.23+0.20-0.41 | 25.40+0.23-0.46 | 28.58+0.25-0.51 |
(0.625+0.007-0.014) | (0.750+0.008-0.016) | (0.875+0.008-0.016) | (1.000+0.009-0.018) | (1.125+0.010-0.020) |
外螺紋臺肩 | 31.75+0.13-0.25 | 38.10+0.13-0.25 | 41.28+0.13-0.25 | 50.80+0.13-0.25 | 57.15+0.13-0.25 |
外徑 | (1.250+0.005-0.010) | (1.500+0.005-0.010) | (1.625+0.005-0.010) | (2.000+0.005-0.010) | (2.250+0.005-0.010) |
扳手方寬度 ±0.79(±0.031) | 22.23(0.875) | 25.4(1.000) | 25.4(1.000) | 33.34(1.3125) | 38.1(1.500) |
|
扳手方長度 | 31.75(1.250) | 31.75(1.250) | 31.75(1.250) | 38.1(1.500) | 41.28(1.625) |
Lk API抽油桿長度、短節長度±50(±2.0)(從一端外螺紋臺肩面至另一端外螺紋臺肩面之間測量) | 508(20.0) | 508(20.0) | 508(20.0) | 508(20.0) | 508(20.0) |
1117.6(44.0) | 1117.6(44.0) | 1117.6(44.0) | 1117.6(44.0) | 1117.6(44.0) |
1727.2(68.0) | 1727.2(68.0) | 1727.2(68.0) | 1727.2(68.0) | 1727.2(68.0) |
2336.8(92.0) | 2336.8(92.0) | 2336.8(92.0) | 2336.8(92.0) | 2336.8(92.0) |
2946.4(116.0) | 2946.4(116.0) | 2946.4(116.0) | 2946.4(116.0) | 2946.4(116.0) |
3556.0(140.0) | 3556.0(140.0) | 3556.0(140.0) | 3556.0(140.0) | 3556.0(140.0) |
7518(296) | 7518(296) | 7518(296) | 7518(296) | 7518(296) |
9042(356) | 9042(356) | 9042(356) | 9042(356) | 9042(356) |
國內抽油桿 長度±50 | 900,1400,1900, | 900,1400,1900, | 900,1400,1900, | 900,1400,1900, | 900,1400,1900, |
2400,2900,3400, | 2400,2900,3400, | 2400,2900,3400, | 2400,2900,3400, | 2400,2900,3400, |
7900,9900 | 7900,9900 | 7900,9900 | 7900,9900 | 7900,9900 |
鐓粗凸緣直徑 | 30.96+0.13-3.18 | 35.72+0.13-3.18 | 38.10+0.13-3.18 | 48.42+0.13-4.76 | 55.56+0.13-4.76 |
1.21875+0.005-0.125 | 1.40625+0.005-0.125 | 1.500+0.005-0.125 | 1.90625+0.005-0.1875 | 2.1875+0.005-0.1875 |
AR±3.2(±0.125) | 47.63(1.875) | 57.15(2.250) | 66.68(2.625) | 76.20(3.000) | 85.73(3.375) |
CR+1.59-0.40 (+0.0625-0.015625) | 3.18(0.125) | 3.18(0.125) | 4.76(0.1875) | 4.76(0.1875) | 4.76(0.1875) |
|
鋼制抽油桿力學性能
鋼制抽油桿力學性能 |
|
等級 | 最小屈服強度(0.2%殘余變形) | 最小抗拉強度 | 最大抗拉強度 | 伸長率200mm% | 斷面收縮率Z% | 表面硬度HRC | 心部硬度HB | 疲勞壽命 |
| psi | MPa | psi | MPa | psi | MPa | ≥1.0X106 |
K | 60000 | 414 | 90000 | 621 | 115000 | 793 | ≥13 | ≥60 |
|
|
|
C | 60000 | 414 | 90000 | 621 | 115000 | 793 | ≥13 | ≥50 |
|
|
|
D | 85000 | 586 | 115000 | 793 | 140000 | 965 | ≥10 | ≥50 |
|
|
|
KD | 85000 | 590 | 115000 | 795 | 140000 | 965 | ≥10 | ≥50 |
|
|
|
HL | 115000 | 795 | 140000 | 965 | 173339 | 1195 | ≥10 | ≥45 |
|
|
|
HY | / | / | 140000 | 965 | 173339 | 1195 | / | / | ≥42 | ≥224 |
|
EHL | / | / | 188500 | 1300 | 217500 | 1500 | / | / | ≥50 | ≥320 | ≥2.5X106 |
注:在下屈服強度無法測出時,應考慮加工成標準試樣安裝引伸計進行測量
|
a 一般采用優質碳素鋼制造,經有效熱處理可達到本表規定的力學性能。 b 一般采用個鉬鋼(但不限于此類鋼)制造,經有效熱處理可達到本表規定的力學性能。 |
鋼制抽油桿常用化學成分表
常用抽油桿化學成分 |
AISI | C | Si | Mn | P | S | Cr | Ni | Mo | V | Cu | Al |
1541 | 0.36-0.45 | 0.15-0.35 | 1.35-1.65 | ≤0.04 | ≤0.04 | ≤0.3 | ≤0.35 | ≤0.06 | / | ≤0.35 | ≤0.035 |
4120 | 0.17-0.24 | 0.17-0.37 | 0.4-0.7 | ≤0.025 | ≤0.025 | 0.8-1.1 | ≤0.3 | 0.15-0.25 | / | ≤0.2 | / |
4130 | 0.26-0.33 | 0.17-0.37 | 0.4-0.7 | ≤0.025 | ≤0.025 | 0.8-1.1 | ≤0.3 | 0.15-0.25 | / | ≤0.2 | / |
4138 | 0.37-0.45 | 0.17-0.37 | 0.9-1.2 | ≤0.025 | ≤0.025 | 0.9-1.2 | ≤0.3 | 0.2-0.3 | / | ≤0.2 | / |
4138M | 0.37-0.45 | 0.17-0.37 | 0.9-1.2 | ≤0.025 | ≤0.025 | 0.9-1.2 | ≤0.3 | 0.2-0.3 | 0.04-0.09 | ≤0.2 | / |
4140 | 0.38-0.45 | 0.17-0.37 | 0.5-0.8 | ≤0.025 | ≤0.025 | 0.9-1.2 | ≤0.3 | 0.15-0.25 | / | ≤0.2 | / |
4142 | 0.38-0.45 | 0.17-0.37 | 0.5-0.8 | ≤0.025 | ≤0.025 | 0.9-1.2 | ≤0.3 | 0.15-0.25 | / | ≤0.2 | / |
3130 | 0.22-0.29 | 0.15-0.35 | 0.71-1.0 | ≤0.025 | ≤0.025 | 0.42-0.65 | 0.72-1.0 | 0.01-0.06 | / | ≤0.2 | / |
4320 | 0.18-0.42 | 0.15-0.35 | 0.8-1.0 | ≤0.025 | ≤0.025 | 0.7-0.9 | 1.15-1.5 | 0.2-0.3 | 0.04-0.09 | ≤0.35 | ≤0.035 |
4330 | 0.3-0.35 | 0.15-0.35 | 0.8-1.1 | ≤0.025 | ≤0.025 | 0.8-1.1 | 1.65-2.0 | 0.2-0.3 | 0.05-0.10 | ≤0.2 | / |
4621 | 0.18-0.23 | 0.17-0.37 | 0.7-0.9 | ≤0.025 | ≤0.025 | ≤0.35 | 1.65-2.0 | 0.2-0.3 | / | ≤0.2 | / |
4720 | 0.19-0.23 | 0.15-0.35 | 0.85-1.05 | ≤0.025 | ≤0.025 | 0.8-1.05 | 0.9-1.2 | 0.22-0.30 | 0.02-0.05 | 0.40-0.60 | / |
抽油桿重量表
抽油桿重量表 |
規格 | 5/8" | 3/4" | 7/8" | 1" | 1-1/8" | 1-1/4" | 1-1/2" |
kg/m | 1.68 | 2.4 | 3.2 | 4.2 | 5.3 | 6.4 | 9.4
|
